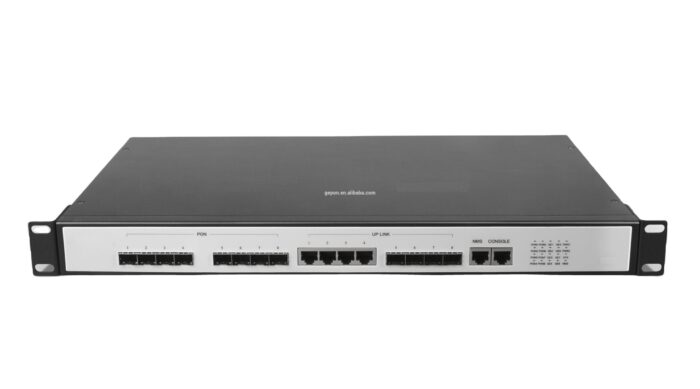

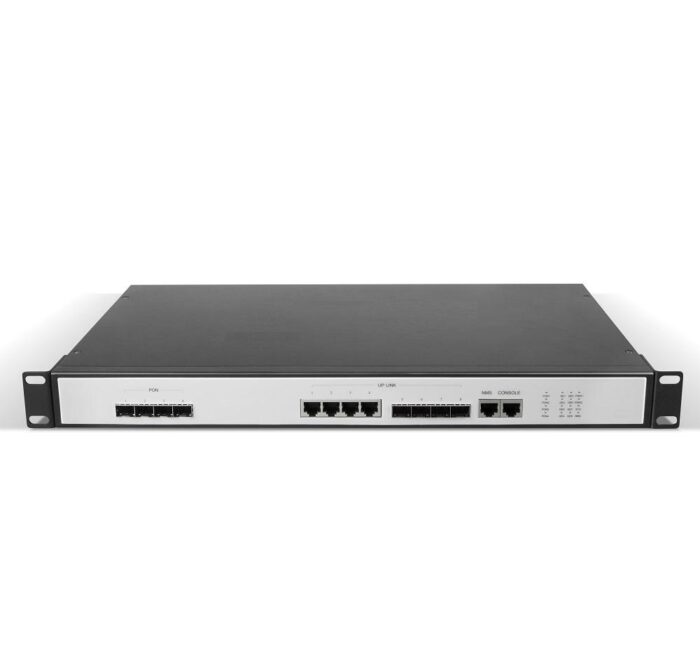

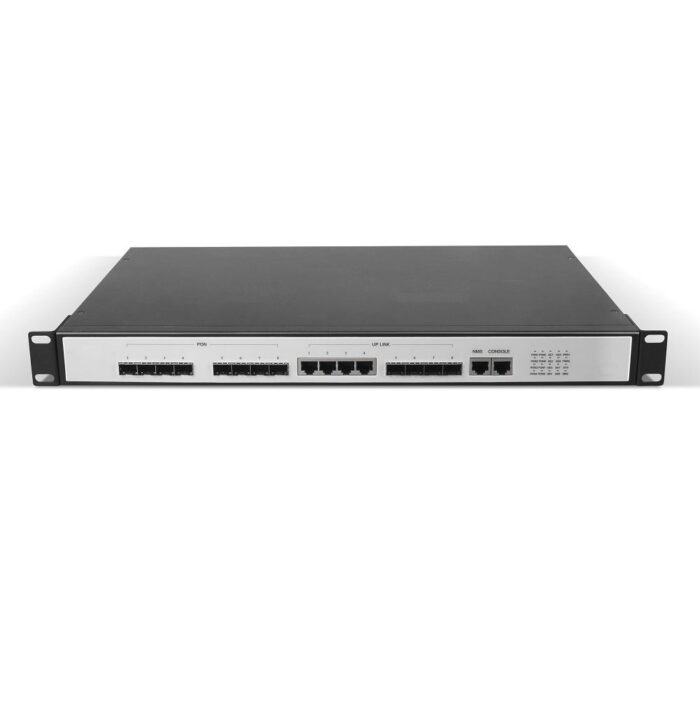

EPON OLT 4 Port: EPON OLT E9004-08-B/BT is a small office end OLT device of FTTX communication independently researched and developed by SmartFiber Company; it complies with IEEE802.3-2005 standard and requirements V2.1 specification for EPON device of China Telecom; It can provide users with access to a wide range of services such as broadband, voice, IPTV and CATV. 4 PON EPON OLT 8 PON EPON OLT Product Features: ● High speed, flexible networking ● Up to 4 PON EPON OLT ports can be supported in a complete system ● High reliability data, strong adaptability to the environment ● 1U case, design, all modules can be hot plug, and support online update ● Good protection measures. ● Layer 2 aggregation switching ● Layer 2 wire-speed transmission; support rich layer 2 protocol, 16K MAC address list ● 4 uplink SFP ports, 4 uplink GE ports. support up to 8G uplink bandwidth of port aggregation function ● Uplink port supports electrical port modules and optical port modules, which can be easily configured as needed ● Perfect network management function ● Support GUI based graphical interface and WEB interface management ● Support in-band management, out-of-band management ● Support online update of software tools ● Powerful QOS function ● Support DBA switch, uplink and downlink traffic speed-limiting ● Support IP ToS, IEEE802.1p ● Port based traffic management, traffic infrastructure ● Rich OAM functionality ● Support ONU automatic identification, automatic discovery, and automatic registration ● Support the function of automatic loop back to a link ● Powerful VLAN function, including VLAN stacking, Physical, translation, flexible QINQ ● Support easy multicasting control, support IGMP snooping Product Specification : Item EPON OLT Change ability 108 Gbps Delivery (IPv4 / IPv6) 80 mps do Port 4 * PON, 4 * GE, 4 * GE SFP / 4 * 10GE SFP (BT) Redundancy created Dual power supply, support AC input, dual DC input and AC DC input Power supply AC: 90~240V, 47~63Hz; DC: -36V~72V; Power consumption ≤30W Specify the length (mm) (W*D*H) 442mm×44mm×260mm Weight (in maximum configuration) ≤ 5 kg The environment parameters Working temperature: 0°C ~ 50°C Storage temperature: -20°C ~ 70°C Relative humidity: 10% ~ 90%, non-condensing Business Features: Item EPON OLT PON features IEEE 802.3ah EPON China telecom / Unicom GEPON standard 20Km per fiber Access up to 64 terminals for a single fiber PON Uplink and downlink triple churning encrypted function The ONU terminal has a valid certificate, indicating an invalid ONU registration DBA algorithm Standard OAM and extended OAM ONU batch software upgrade, fixed time upgrade, update time PON transmits and analyzes received optical power L2 features MAC MAC Black Hole Port MAC limit 16K MAC address VLAN 4K VLAN access Port based / MAC-based / IP subnet-based VLAN Port based QinQ and Selective QinQ (StackVLAN) VLAN Swap and VLAN Remark and VLAN Definition GVP According to ONU service flow VLAN add, delete, change Spanning tree protocol IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol instances (MSTP) ONU remote loop detection alarm Port Two-directional bandwidth control Static connections and LACP (Link Aggregation Control Protocol) Port mirroring and traffic mirroring Security features User security Anti-ARP-spoofing Anti-ARP-flooding IP Source Guard creates IP VLAN MAC Port binding Port Isolation The MAC address is bound to the port and the port’s MAC address is visible IEEE 802.1x and AAA / Radius authentication Type security Anti-DOS attack (such as ARP, Synflood, Smurf, ICMP attack), ARP discovery, wind snake and Msblaster worm attack SSHv2 Secure Shell SNMP v3 encrypted management Secure IP access through Telnet Hierarchical management and password protection of users Network security User-based MAC and ARP traffic inspection Restrict ARP traffic from all users and force out users with bad ARP traffic Dynamic ARP table-based binding Support IP VLAN MAC Port binding L2 to L7 ACL flow filtration mechanism of 80 bytes of the header of user packets Port-based broadcast/multicast limits and auto-shutdown dangerous ports URPF to prevent IP address spoofing and attacks DHCP Option82 and PPPoE upload the user’s physical location Plaintext authentication of OSPF, RIPv2 and BGPv4 packets and MD5 cryptograph authentication Service features ACL Standard and extended ACL Time Range ACL Packet filter provides filtering based on source/address MAC address, source/address IP address, port, protocol, VLAN, VLAN range, MAC address, or packet error . The system supports simultaneous verification of more than 50 car services Support packet detection from L2~L7 even deep to 80 bytes of IP packet header QoS Rate limit for packet sending/receiving speed of port or self-defined flow and provide comprehensive monitoring and two-speed tri-color view of self-defined flow Key points for a port or self-defined flow and provide 802.1P, DSCP values ​​and Notes CAR (Committed Access Rate)、Traffic Shaping and flow statistics Packet mirror and redirection of interface and self-defined flow Super queue schedule based on port and self-defined flow. Each port/flow supports 8 priority queues and scheduling of SP, WRR and SP WRR. Congestion avoidance mechanism, including Tail-Drop and WRED IPv6 SA/DA Classification MLD Snooping Multicast IGMPv1/v2/v3 IGMPv1/v2/v3 Snooping IGMP filter MVR and cross VLAN multicast traffic IGMP Fast IGMP name PIM-SM/PIM-DM/PIM-SSM PIM-SMv6, PIM-DMv6, PIM-SSMv6 MLDv2/MLDv2 Snooping Trustworthiness Loop protection EAPS and GERP (back-time<> Loopback-tracking Connect protection FlexLink (return-time<> RSTP/MSTP (back-time<> LACP (back-time<> BFD Device protection VRRP host backup Double fault-tolerant backup of host program and configuration files PON card/fan hot-swappable 1 1 hot backup power Routing features ARP Support static ARP; Support dynamic ARP; Support for ARP proxies IPv4/6 Support static routing; Support black hole routing Maintenance Network maintenance Telnet-based statistics RFC3176 sFlow LLDP 802.3ah Ethernet OAM RFC 3164 BSD syslog protocol Ping and Traceroute Property management Command-line interface (CLI), Console, Telnet and WEB configuration System configuration with SNMPv1/v2/v3 RMON (Remote Monitoring) 1/2/3/9 group MIB NTP (Network Time Protocol) Purchasing: Product name Product description E9004-B Cassette OLT (4 downlink 1000M PON ports, 4 uplink GE ports, 4 uplink 1GE SFP ports) E9004-BT Cassette OLT (4 downlink 1000M PON ports, 4 uplink GE ports, 4 uplink 10GE ports) E9008-B Cassette OLT (8 downlink 1000M PON ports, 4 uplink GE ports, 4 uplink 1GE SFP ports) E9008-BT Cassette OLT (8 downlink 1000M PON ports, 4 uplink GE ports, 4 uplink 10GE ports) Ball Packaging Big 175mm(L)*442mm(W)*44mm(D) The weight 2.5 kg each Packaging Details The package is always a wooden box (Size: L*W*H). If exported to Europe, the wooden box will be fumigated. If the box is more rigid, we will use PE film for packaging or packaging according to the customer’s special request.     For more: Click here
