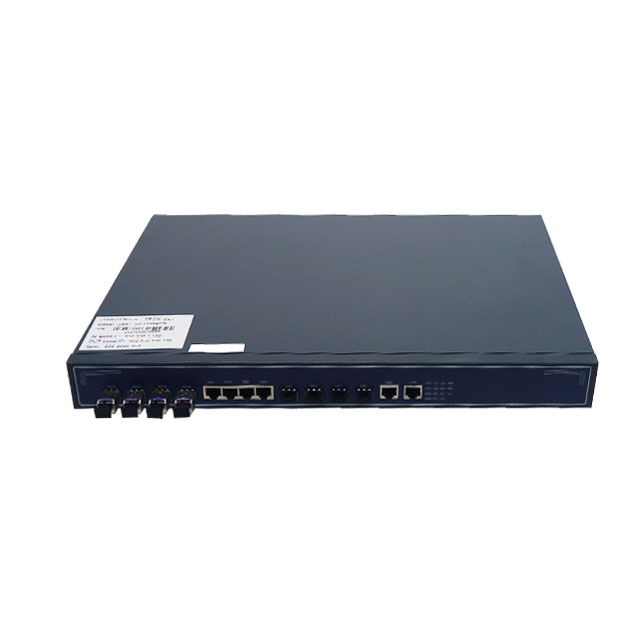

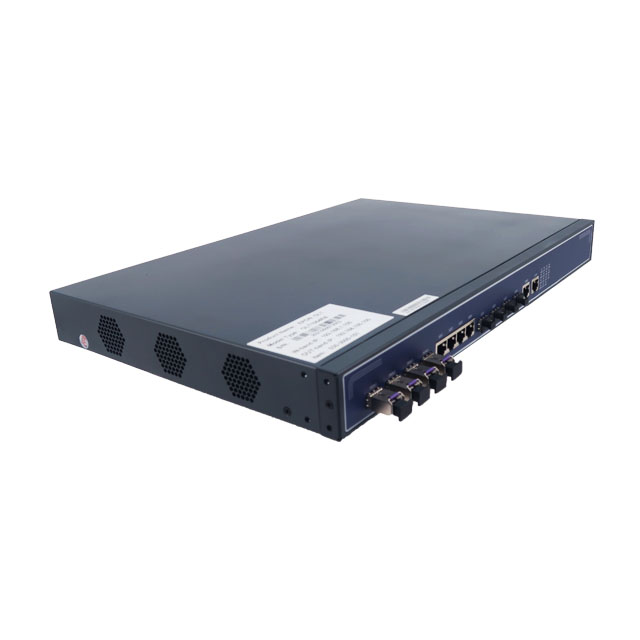

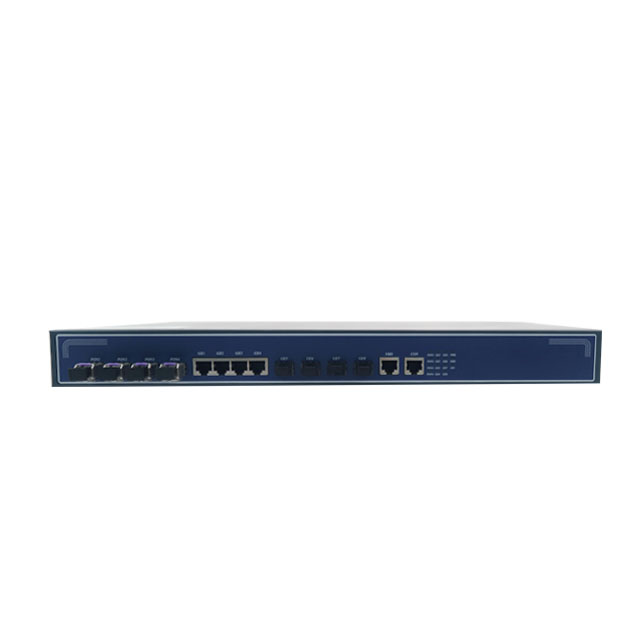

Description of OLT1008G: GPON OLT1008G  is the optical line terminal equipment. Which is high reliability, flexible, easy maintain. It can support 8 GPON PON ports, 2.5Gbps bandwidth, and connect 1024 remote ONU mostly (by 1:128 splitter), and provides 8GEuplink optic ports , 8 GE uplink electric ports.Be Applied to FTTB/FTTP/FTTH access solutions.  Features: Comply with ITU-T G.984/G.988 standards and China’s Telecom industry GPON standards.Support OMCI remote management of ONT/ONU, compatible with ITU-984.4 OMCI protocol.Standalone 1U 4PON compact design of OLT products.SFU, HGU series ONT products, Meet the needs of the different scenarios of networking.The complete layer 2 switching function. OLT is with powerful layer 2 switching capacity and complete layer 2 protocol. Supporting with the exchange, isolation and One By One working mode. Supporting port aggregation, VLAN, port speed, queue technology, flow control technology and ACL rich two layer function. Offering the technical support for the development of the multi-service fusion. GPON products is with complete DBA function and excellent ability of QoS service. DBA provides a variety of QoS for the GPON system by means of four types of bandwidth and five types of T-CONT. It can meet different business flow of time delay, jitter and packet loss rate of different QoS requirements. Support CLI and SNMP management. complying with OMCI standard. Realizing the business management through OMCI channel protocol, including the ONT function parameters, type and number of T-CONT business, QoS parameter, configuration request information and performance statistics, automatic notification running event system , the realization of OLT on ONT configuration, fault diagnosis, performance and security management. Product Specifications of OLT1008G: Product name OLT1008G 10G 8 GPON OLT with 4PCS SPF C model OLT1008G Type 1U 19-inch standard box PON Port 8 Max splitting ratio 1:128 Management port 1 10BASE-TX out band port  1 CONSOLE local management por Transmission Distance 20KM Port rate  Downstream: 2.5Gbps, Upstream: 1.25Gbps Wavelength  Forwarding: 1490nm, Receiving: 1310n Interface type  SC/UPC Fiber type  9/125μm SMF (Single Mode Fiber) Light transmission power Class B 1.5～ 5dBm, Class C 3～ 7dB Receiving sensitivity  Class B -28dBm, Class C -30dB Saturation power  Class B -8dBm, Class C -12dBm Network management method  Support CLI, SNMP, TELNET Business capabilities Support for state monitoring, configuration management, equipment log, equipment upgrades, equipment management, user management.Layer-2 switch configuration such as Vlan, Trunk, RSTP, IGMP, QOS, etc. PON management function DBA ,ONT authorization, ACL, QOS, etc. Online ONT configuration and management. User management. Alarm management Power supply  AC110/220V OR DC-48V Maximum power  65W Working temperature  0～50℃ Storage temperature  -40～85℃ Relative humidity   5～90% (Non-condensing）   View More Products
